Pumps

MP102A

  • MP102A is a smaller type of MP101-4WAY
  • It is easy to adjust shot volume by the micrometer
  • Applicable material: Oil, Epoxy, Photoresist, Inks and other low to middle viscosity materials
MP102A

Specification

Valve Structure Plunger
Shot Volume 0.003 ~ 0.085mL
Applicable Viscosity 1 ~ 20,000mPa•s
Wetted Part SUS304, SUS316, Perflo, PCTFE, PTFE
Fluid Pressure 0 ~ 29.4kPa
Connecting Port of Piping IN. M6 x 1.0
Operating Cycle 120cycles/min.
Operating Air Pressure 392 ~ 686kPa

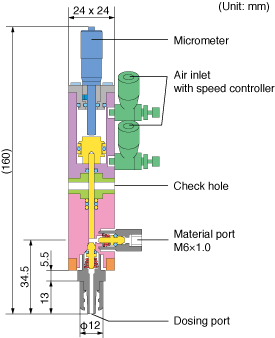

External Dimensions (W)24 x (D)24 x (H)160mm
Weight 190g
Standard Accessories MP102-10 PTFE Seal=2
MP102-14 O-ring Perfluor=1
MP102-15A Check Valve=1
MP102-16 Spring of Check Valve (0.3)=1
MP102-17 Spring of Check Valve (0.7)=1
MP102A

Consumption Parts

MP102-10 PTFE Seal 5
MP102-11 PTFE Packing 10
MP102-14 O-ring Perfluor 5
MP102-15A Check Valve 2
MP102-16 Spring of Check Valve (0.3) 5
MP102-17 Spring of Check Valve (0.7) 5
MP102-21A O-ring 20
