FA Dispensing Machines

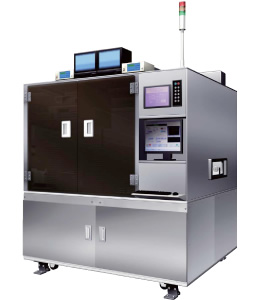

Multi-head seal dispenser
- This system is flexible to lay out patterns of main seal and dummy dispensing arrayed on the PCB to the multiple heads
- It can be also used multiple materials at a time to set individual conditions for dispensing
Specification
| FDS3747-4H | FDS4673-4H | FDS7392-6H | |
|---|---|---|---|
| Applicable Board Size | 370 x 470mm | 460 x 730mm | 730 x 920mm |
| No. Head | 4 heads | 4 heads | 6 heads |
| Positioning Accuracy | ±0.02mm | ||
| Driving System | Linear motor axis | ||
| Functions | Needle clearance compensation Height compensation for works |
||
| External Dimensions | (W)1600 x (D)2000 x (H)1900mm | (W)1800 x (D)2600 x (H)1900mm | (W)2500 x (D)3200 x (H)1900mm |
