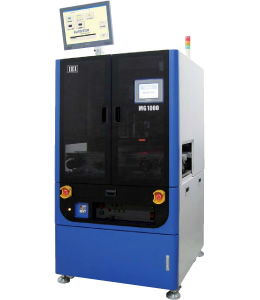

Dispensing system for conformal coating material
- Any patterns by linear and dot dispensing can be created thanks to IEI original program
- This inline system is the ideally suited for moisure-proof coating
Applications
Coating
Specification
MG1000
| Applicable Board Size | MAX. (W)330 x (D)250 ～ MIN. (W)80 x (D)50mm |
|---|---|
| Driving System | AC servo motor, Ball screw drive |
| Method of Work Positioning | A lift-up and fixed-side clamp |
| Transfer System | Round-belt conveyor |
| Delivery Direction | from left to right |
| At Pass Line | 900mm |
| Power Supply | Single-phrase 200V±5% 20A |
| External Dimensions | (W)840 x (D)885 x (H)1931mm |
| Weight | Approx. 400kg |
