Q1
What is Dispenser?
A1
Our producing Dispensers mean that controllers and peripheral devices supply all kinds of liquid precisely.
These dispensers are used not only in electronics field but also in medical and food industries. We have a variety of fluid dispensers for any purpose.
Q2
What are dispensing applications?
A2
IEI dispenser's applications as follows;
  • Molding electric parts, such as small relay
  • IC coating by epoxy
  • Temporary fixation of chips by UV binder
  • Grease coating to gear case
  • Silver paste dispensing at the die-bonding process
  • Underfill for CSP, BGA
  • Encapsulation for CSP, BGA
  • Solder paste dispensing (Dot or Line)
  • Silicon sealing for LED panel and so on
  • Filling up liquid materials to cosmetic bottles
  • IC chip conducting and fixingIC chip conducting and fixing
  • Die attachDie attach
  • UV adhesive dispensing for pick-up lensUV adhesive dispensing for pick-up lens
  • Printer drive partPrinter drive part
  • Underfilling for flip chipUnderfilling for flip chip
  • Screw tightening to Top clamp of spindle motorScrew tightening to "Top clamp" of spindle motor
  • PCB separator for cell phonePCB separator for cell phone
  • Glue and UV curing to lens partsGlue and UV curing to lens parts
  • Pick & placePick & place
Q3
What about dispensing system structure?
A3
There are two kinds of system according to control system, liquid flow rate control system and volume control system.

Liquid flow rate control system

System 1 (Barrel system) and System 2 (Cartridge system) :
Liquid material filled in the pressure container are supplied compressed air from the dispenser direct to material.
System 3 and System 4 (Valve + Cartridge system and Valve + Tank system) :
Material filled in the pressure container is pressured and controlled by switch on and off the flow route.

Pressurization ON-OFF

  • SYSTEM 1 Barrel SystemLarge
  • SYSTEM 2 Cartridge SystemLarge

Flow route ON-OFF

  • SYSTEM 3 Valve + Cartridge SystemLarge
  • SYSTEM 4 Valve + Tank SystemLarge

Volume control system

This system has a chamber on the flow route for measurement of dispensing volume.

  • Volume Control System

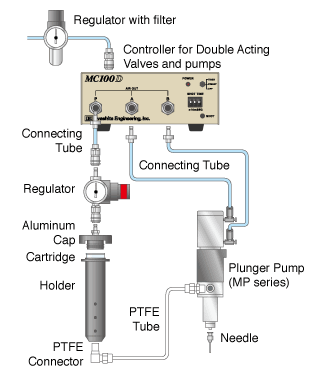

    Plunger Pumps (MP series)Large
  • Volume Control System

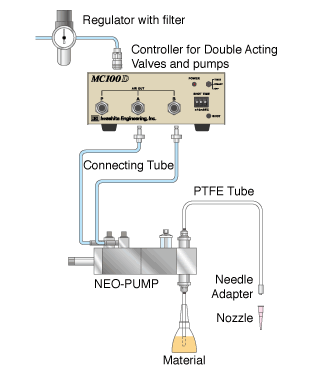

    NEO-PUMPLarge

Comparison chart of each system

System System 1 System 2 System 3 System 4 Volume Control
System
Type For Barrels
(~70cc)
Cartridge, etc
(170,340cc etc)
Valve
(Cartridge)
Valve
(Tank)
Plunger Pump
NEO-PUMP
Accuracy  › › › 
Speed  › › › ›
Maintenance   › › ›
Viscosity
[mPa¥s]
~ 1,000,000 ~ 1,000,000 ~ 300,000 ~ 100,000 ~ 200,000
Automation     
Q4
Is it available to manufacture the automatic system with dispenser?
A4
Yes. We can provide desktop robot system, stand-alone type and fully automated dispensing system follow customer requirement.
Q5
Do you have any dispensing controllers which can save dispensing data into controllers?
A5
Yes. ACCURA 9 and ACCURA 8DX have 100 channels, and ACCURA DG has 500 channels for data memories.
Q6
Is it available to connect to PC and manage the data?
A6
Yes. ACCURA 9 and ACCURA 8DX can save and load the dispensing data using RS232C. ACCURA DG has IEI's special communication software.
Q7
Is there any solutions for changing shot volume caused by material level decreasing?
A7
Yes. ACCURA series have the function to compensate material level decreasing.

What is the variation by material level decreasing (space capacity difference)?

Decreasing the material level in the barrel makes increasing space capacity, therefore it delays in the pressure wave and it tends to decrease the amount of dispensing. It causes a variation of dispensing accuracy.

Delay of shot pressure corrugation by height difference

chart

Compensation by ACCURA series (line: blue)

chart

Some of ACCURA series can solve volume variation by IEI original technology (patented in Japan, U.S.A) and help to prevent dripping by auto-compensation for vacuum pressure.

Q8
Is there any solutions for changing shot volume caused by material temperature variation?
A8
Yes. Using the temperature control system (NEO-ONE) can dispense under the constant temperature. Especially it is more effective for solder paste and UV adhesive.
Q9
Is it available to rent/borrow a system for the demonstration?
A9
Yes. We provide the demonstration system as free of charge. Please contact to IEI sales office.
Q10
Is it available to testing IEI dispensers with a robot or automatic dispensing system?
A10
Yes. It is possible to use our any system for demonstration in our office. Please contact to IEI sales office.
Q11
Is it available to get some accessories for testing as free of charges? (Such as Needles, Barrels and Plungers)
A11
Yes. We can provide accessory samples for testing. Please contact to IEI sales office.
Q12
Is it available to install a dispenser with an automated system?
A12
Yes. It is available to external control through 4-pin metal connector on the rear panel of the dispenser unit. In addition, ACCURA series can synchronize from the equipment using RS232C or parallel port.
Q13
Is there any method for filling the material into the barrel?
A13
Yes. We provide two kinds of filling system, vacuum system and pressurized system.

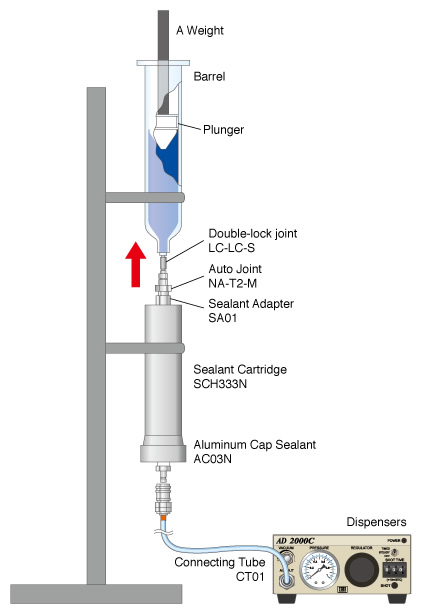

Example of pressurized barrel filling

Q14
Is it available to specify the nozzle type?
A14
Yes. We can provide custom-made nozzles (length, bend, multiple points) specified customer's request.
Q15
Is it available to easily automated?
A15
Yes. Automation by the Desktop robot "EzROBO series", and various type of system including system upgrading can be carried out.
Q16
Is any special equipments required for setting-up the dispensers?
A16
Providing only power supply AC100 ~ 220V and compressed air for operating. (Non-lubricated dry air required)
