  • AV801 is for anaerobic adhesives instead of AV502
  • As wetted part is made from resin, it is suitable for UV cured resin
  • Applicable material: Anaerobic adhesive, UV anaerobic adhesive, Cyano-based adhesive, Epoxy, Silicone and other materials

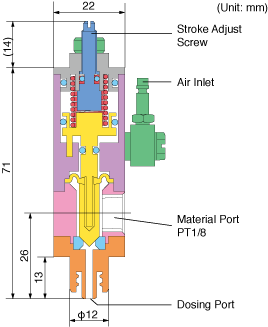

Valve Structure Needle
Minimum Dispensing Volume 0.01mL
Flow Rate
(KV value)
Applicable Viscosity 1 ~ 300,000mPa•s
Wetted Part PCTFE, Polyacetal, PTFE, Polypropylene
Fluid Pressure Maximum 490kPa
Connecting Port of Piping IN. PT1/8
Operating Cycle 150cycles/min.
Operating Air Pressure 392 ~ 686kPa
External Dimensions (W)22 x (D)22 x (H)71mm
Weight 100g
Standard Accessories AV502-10 Valve Seat=1

Consumption Parts

AV502-7 Diaphragm (PTFE) 2
AV502-10 Valve Seat 5
AV801-8 Needle Valve 1
