Valves
AV601
- AV601 is the most suitable for rubber adhesives and materials required to cut dripping off
- Applicable material: Rubber Adhesives, Epoxy, Silicone and other low to middle viscosity materials
Specification
| Valve Structure | Poppet |
|---|---|
| Minimum Dispensing Volume | 0.05mL |
| Flow Rate (KV value) |
2.1L/min. |
| Applicable Viscosity | 1 ~ 100,000mPa･s |
| Wetted Part | SUS304, PTFE |
| Fluid Pressure | Maximum 686kPa |
| Connecting Port of Piping | IN. OUT PT1/8 |
| Operating Cycle | 100cycles/min. |
| Operating Air Pressure | 343 ~ 686kPa |

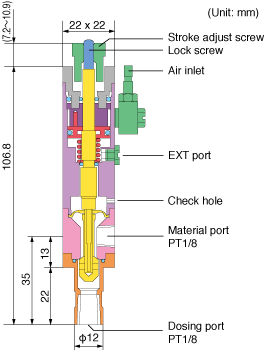

| External Dimensions | (W)22 x (D)22 x (H)118mm |
| Weight | 290g |
| Standard Accessories | AV601-24 Screw Tightness Jig=1 |
As shipped, AV601-21T Poppet new type (PTFE) has been installed.
Needle adapter not included. (Optional)
Applicable adapters: NA-T1-M, NA-T1-P
Consumption Parts
| AV601-12 Diaphragm | 2 |
|---|---|
| AV601-14 Valve Rod Cover | 2 |
| AV601-21T Poppet New Type (PTFE) | 5 |
| AV601-21P Poppet New Type(Polypropylene) | 5 |
| AV601-22 Main Poppet Screw | 5 |
| AV601-23 Sub Poppet Screw | 5 |
