AV505

  • AV505 seals around the dosing port by needle valve and makes no fluid dripping and keeps a good condition of port
  • It is to dispense finely by minimizing capacity to the needle point edge
  • New sealing structure achieves the high durability and easy swap of valve seat
  • This can adjust the direction of bent needle in order to rotate the needle mounting position
  • Applicable material: Epoxy, Silicone, Other liquid in general, UV anaerobic adhesive
AV505

Specification

Valve Structure Needle
Minimum Dispensing Volume 0.01mL
Flow Rate
(KV value)
1.0L/min.
Applicable Viscosity 1 ~ 100,000mPa•s
Wetted Part SUS304, PTFE, Polypropylene
Fluid Pressure Maximum 490kPa
Connecting Port of Piping IN. PT1/8
Operating Cycle 150cycles/min.
Operating Air Pressure 392 ~ 686kPa

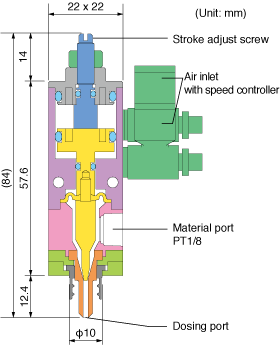

External Dimensions (W)22 x (D)22 x (H)84mm
Weight 100g

Controller for double-acting valve: MC100D

Not for precision nozzle. Only custom-made.

AV505

Consumption Parts

AV505-1 Needle Adapter 1
AV502-7 Diaphragm (PTFE) 2
