Valves

AV102

  • AV102 is a smaller type of AV101 and dispenses more accurately
  • Applicable material: Epoxy, silicon, grease, adhesive, and other materials
AV102

Specification

Valve Structure Spool
Minimum Dispensing Volume 0.05mL
Flow Rate
(KV value)
5L/min.
Applicable Viscosity 1 ~ 1,000,000mPa¥s
Wetted Part SUS304, SUS316 (Electroless nickel plating), PTFE
Fluid Pressure Maximum 686kPa
Connecting Port of Piping IN. OUT PT1/8
Operating Cycle 100cycles/min.
Operating Air Pressure 343 ~ 686kPa

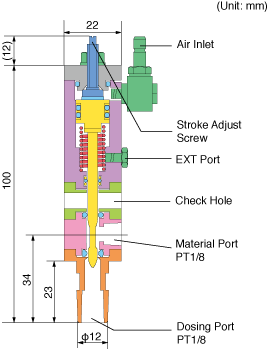

External Dimensions (W)22 x (D)22 x (H)100mm
Weight 270g
Standard Accessories AV102-15S Silicon Seal=2
AV102-15V Viton Seal=2

As shipped, AV102-15 PTFE seal has been installed.

Needle adapter not included. (Optional)
Applicable adapters: NA-T1-M, NA-T1-P

AV102

Consumption Parts

AV102-15 PTFE Seal 5
AV102-15E EPDM Seal 5
AV102-15S Silicon Seal 5
AV102-15V Viton Seal 5
