Desktop Robots

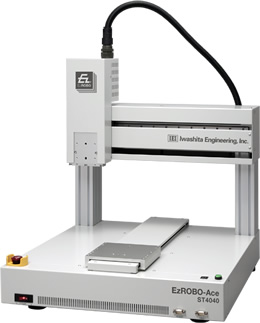

EzROBO-Ace ST4040

  • Large work area enables automation of multipurpose usage.
  • High Rigidity, High Precision and Large Work Area
EzROBO-Ace ST4040

Specification

EzROBO-Ace ST4040
Positioning repeat accuracy +/-0.01mmY axis load capacity 11kgZ axis load capacity 6kgEzEDITORFor Image processingInput and Output 16-pointsProgram Channel 20pgmFree voltage
DispensingUVImage ProcessingSolder PasteScrew TighteningPick & PlacePCB Separator

Click on application icon, you can see an example for using.

Operation Area X axis: 400mm, Y axis: 400mm, Z axis: 150mm
Power Supply AC100 ~ 120V, AC200 ~ 240V (50/60Hz)
External Dimensions (W)583.2 x (D)652.5 x (H)670mm (Body)
Weight Approx. 50kg
ST4040
EzROBO-Ace ST4040 4-axis
Positioning repeat accuracy +/-0.01mmY axis load capacity 11kgZ axis load capacity 6kgR axis positioning repeat accuracy +/-0.02Input and Output 16-pointsProgram Channel 20pgmFree voltage
Dispensing

Click on application icon, you can see an example for using.

Operation Area X axis: 400mm, Y axis: 400mm, Z axis: 150mm, R axis: 360
Power Supply AC100 ~ 120V, AC200 ~ 240V (50/60Hz)
External Dimensions (W)583.2 x (D)652.5 x (H)776mm (Body)
Weight Approx. 53kg

Stroke of Z-axis is without jig.

Robot communication software EzEDITOR for only 3 axis EzROBO-Ace ST4040.

ST4040 4-axis
