Pumps

MP101-4WAY

  • MP101-4WAY can dispense precisely because of measuring volume method by plunger
  • It is easy to adjust shot volume by plunger's stroke
  • Applicable material: Grease, Epoxy and other materials
MP101-4WAY

Specification

Valve Structure Plunger
Shot Volume 0.005 ~ 0.18mL
Applicable Viscosity 7,000 ~ 200,000mPa•s
Wetted Part SUS304, SUS440C, Graphitized carbon, Kalrez, PCTFE
Fluid Pressure 0 ~ 29.4kPa
Connecting Port of Piping IN. PT1/4
Operating Cycle 100cycles/min.
Operating Air Pressure 392 ~ 686kPa

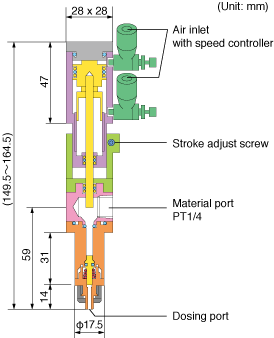

External Dimensions (W)28 x (D)28 x (H)149.5 ~ 164.5mm
Weight 550g
Standard Accessories MP101-4-6 Poppet ASSY (PCTFE, Kalrez)=1
MP101-4-7 Check Valve Spring A=1
MP101-4-8 Seal (Graphitized carbon)=2
MP101-4WAY

Consumption Parts

MP101-4-4 Seal Spacer 1
MP101-4-6 Poppet ASSY 1
MP101-4-7 Check Valve Spring A 1
MP101-4-8 Seal (Graphitized carbon) 2
MP101-18 PTFE Seal 10
