Pipetting System - System for Drug disconvery, Clinical test and Analysis

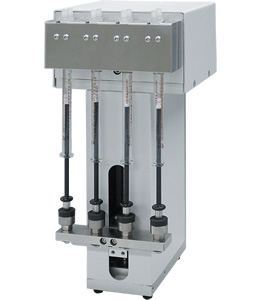

Syringe Pump SP4

  • 4 Head version of "SP1"
  • It's can dispensing & filling at the same time and improve processing speed
  • High precision syringe pump, CV value less than 0.1% (0.2%)
  • Easy operation on the LCD touch panel
  • Shot volume input in mL or L is available
  • Applicable various syringe sizes


Syringe Pump SP4
Effective Stroke 60mm
Driving System Pulse motor, ball screw drive
Resolution 1/12,000 of syringe size
Applicable Syringe 100L ~ 2.5mL
External Dimensions (W)103.2 x (D)158 x (H)278.6mm (Body)
Weight 4.5kg
Syringe Pump Controller SPC1000
Power Supply AC100 ~ 120V (50/60Hz)
Power Consumption 45VA
Display LCD Touch Panel
Operating Mode Bulk-side continuous mode, Bulk-side single shot mode
Head-side continuous mode, Head-side single shot mode
Operation Circumstance +5 ~ +40, non-condensing
External Dimensions (W)196 x (D)171 x (H)123mm (Body)
Weight Approx. 3.0kg

Please contact us for other specification.

Standard Accessories

Connecting Cable 1
AC100V Power Cord 1
I/O Connector 1
IN/OUT fittings 8 each
IN/OUT PTFE tube (10m) 4 each
