Pipetting System - System for Drug disconvery, Clinical test and Analysis

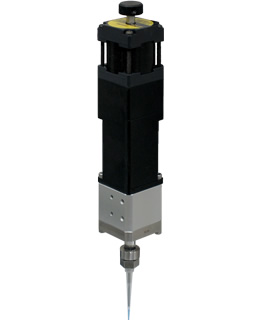

Pipetting Pump PP1
- High precision pipette pump for the small volume dispensing
- Easy operation on the LCD touch panel
- Shot volume input in μL
- Applicable various tips
Specification
Pipette Pump PP1 (NANO Model)
| Plunger Stroke | 10mm |
|---|---|
| Plunger Diameter | 0.5 |
| Motor | Pulse Motor, Feed screw |
| Resolution | 1/20,000 of measuring volume |
| Materials | Plunger: Ultra High Molecular Weight Polyethylene Pump Head: Glass, SUS Seal: PTFE, Silicon |
| Measuring Volume | 1.7μL |
| External Dimensions | (W)29 x (D)29 x (H)190mm |
| Weight | 270g |
Pipette Pump PP1 (MICRO Model)
| Plunger Stroke | 10mm |
|---|---|
| Plunger Diameter | 2.6 |
| Motor | Pulse Motor, Feed screw |
| Resolution | 1/20,000 of measuring volume |
| Materials | Plunger: Sapphire Pump Head: PEEK Seal: PTFE, Fluoro Rubber |
| Measuring Volume | 53μL |
| External Dimensions | (W)29 x (D)29 x (H)230mm |
| Weight | 250g |
Pipette Pump Controller PPC1000
| Power Supply | AC85 ~ 132V (50/60Hz) |
|---|---|
| Power Consumption | 20VA |
| Display | LCD Touch Panel |
| Operating Mode | Continuous Mode, Single Shot Mode |
| Operation Circumstance | +5℃ ~ +40℃, non-condensing |
| External Dimensions | (W)196 x (D)171 x (H)123mm (Body) |
| Weight | Approx. 3.0kg |
Please contact us for other specification.
Standard Accessories
| Connecting Cable | 1 |
|---|---|
| AC100V Power Cord | 1 |
| I/O Connector | 1 |
| Tip Adapter | 1 |
