Dispensers

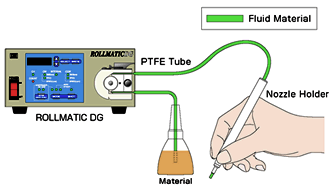

ROLLMATIC DG
- Controls the parameter perfectly from machine.
- Stores the parameter data for 10-ch memories.
- Operates by continuous operation function.
- Equipped with CW, CCW mode and continuous mode.
- Announces for time of tube change.
Specification
| Shot Volume Range |
0.01 ~ 199.98r |
| Shot Time Range |
0.01 ~ 99.99sec. |
| Applicable Material Viscosity |
Low |
| Dispensing Mode |
AUTO Mode: Fixed volume dispensing
STEADY Mode: Continuous dispensing |
| Channel Memory |
10CH |
| Start Signal |
Footswitch or no voltage N.O. contacts
(Available to switch to voltage input by the inner dip switch) |
| Operation Circumstance |
+5℃ ~ +40℃, non-condensing |
| Power Supply |
AC100 ~ 240V (50/60Hz) |
| Power Consumption |
15VA maximum |
| External Dimensions |
(W)190 x (D)130 x (H)85mm (Body) |
| Weight |
3kg |
Standard Accessories
| FS04 Footswitch |
1 |
| Nozzle holder |
1 |
| Nozzle tip for PTT116 |
1 |
| Nozzle tip for PTT1420 |
1 |
| PTT116 Tube, 1m |
1 |
| PTT1420 Tube, 1m |
1 |
| Lubrication oil |
1 |
Optional tubes (PTFE)
| Number |
Inner Diameter |
External Diameter |
Length |
Quantity |
| PTT025075 |
0.25mm |
0.75mm |
10m |
1 |
| PTT0611 |
0.6mm |
1.1mm |
10m |
1 |
| PTT116 |
1.0mm |
1.6mm |
10m |
1 |
| PTT1420 |
1.4mm |
2.0mm |
10m |
1 |
